Corner Ryzer Frame - 90°

Name: Corner Ryzer Frame - 90°
Brand: Progressive Desk
SKU: FLT-05-Black
Price: 720.0 CAD
Availability: InStock

FLT-05-Black

$720.00 CAD

Sale Sold out

Up to 20% off everything. Save Big!

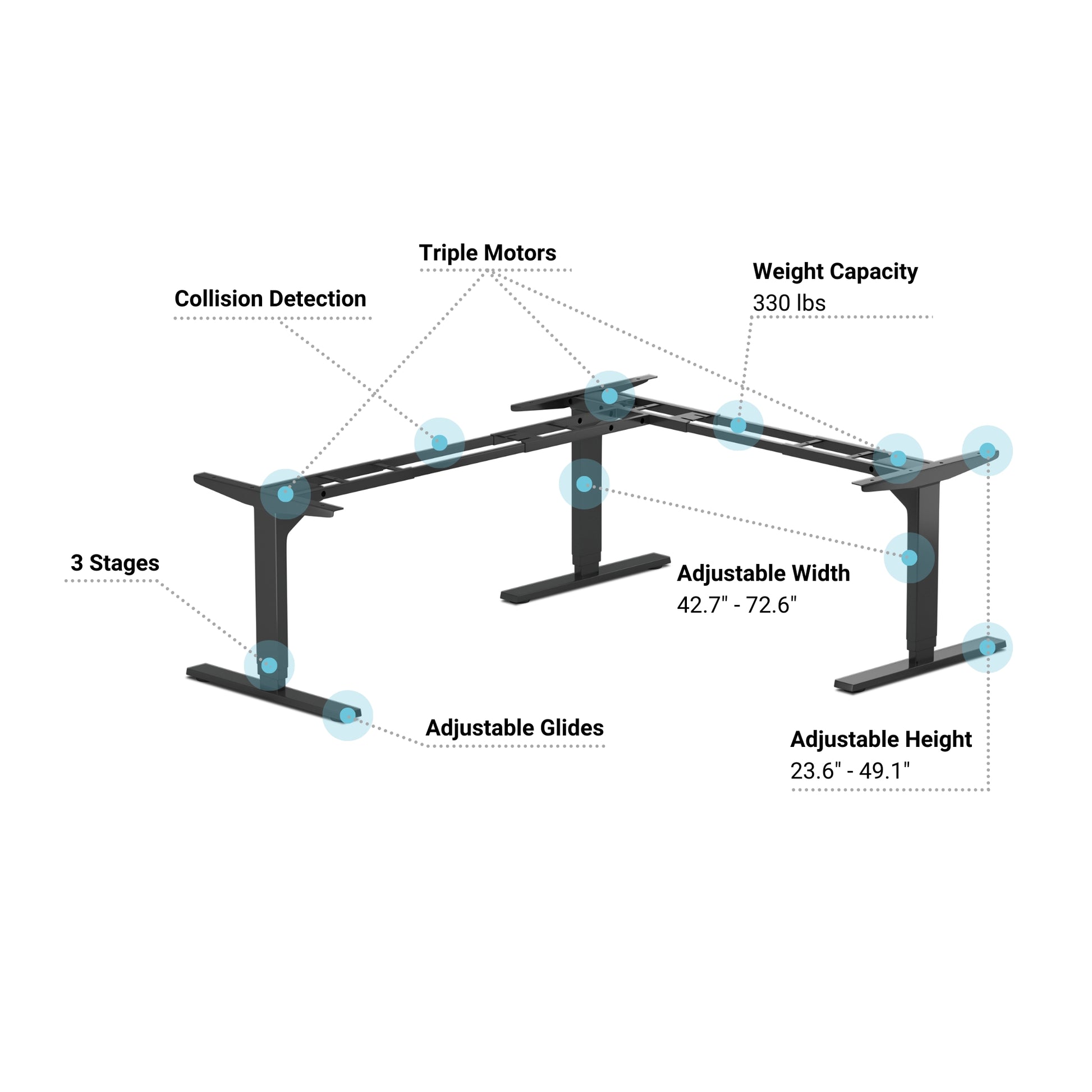

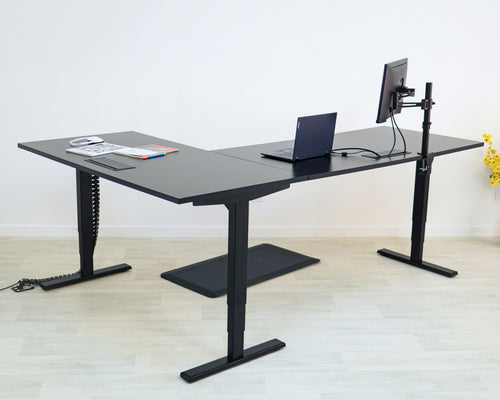

The Corner Ryzer frame is a 90-degree three-leg synchronized lifting system that is adjustable through the use of motorized controls. It is the perfect L-shaped base for your standing desk or workstation and can fit into corners to ensure you maximize the use of your space. This desk frame has a height-adjustable range of 25.5" that moves at a speed of 1.5"/sec, and a frame width that can be adjusted from 42.7" to 72.6", it can cater to a number of tabletop sizes.

Safety is a core feature of this desk frame also, with an anti-collision feature that will halt your desk from moving if it senses something in the way. This desk is also extremely durable, with a 15-year warranty offered to reflect its guaranteed durability and quality.

Installation is simple with step-by-step instructions included with every purchase and this desk frame can be combined with a tabletop of your own. Alternatively, you can also choose from our selection for a full Corner Ryzer standing desk. Find our instructional PDF manual to help you with the installation here.

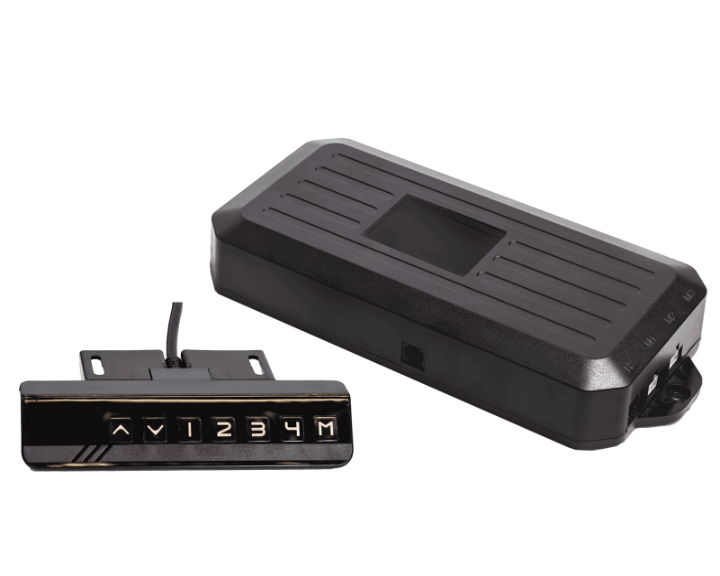

A control box and remote control with preset position options as well as a USB charging port are all included.

Motor System Triple
Column Stages 3
Frame Colors Black, White ,Gray
Surface Finish Powder Coat
Included Accessories Wired Remote with 5V USB Charging, 16x Self-Adhesive Cable ties
Weight Capacity 330 lbs
Speed 1.57"/sec
Frame Height 23.6" - 49.1"
Frame Width 42.7" - 72.6"
Noise Rating <45dB
Protection Class IP51
Number of Remote Options More Info
Collision Detection Yes
Soft Start & Stop Yes
Input Voltage 120VAC, 60Hz
Foot Length 23.6"
Adjustable Feet Yes
Material Steel
Duty Cycle 10%
Weight 97.3 lbs
Warranty 15 Years
Install Time 25 mins

pdf manuals

FLT-05-Black User Manual

Color Black

Product variants

In stock

Free shipping to the 48 United States and Canada

Ships within 24 hours

15 Years Warranty

View full details

Corner Ryzer Frame - 90°

Black

$720.00 CAD

Sale Sold out

Triple Motor

330 lbs Weight Capacity

24" to 49" Height Range

Fast Adjustment (1.57"/sec)

Effortless Adjustability

Space-optimized standing desk

Our Corner Ryzer frame is ideal for L-shaped workspaces as it helps improve space efficiency. The frame width can be easily tailored to accommodate various tabletop sizes. With safety first, the frame includes a collision detection feature to prevent desk movement obstructions, and it is also equipped with a control box, a remote control with preset positions, and a convenient USB charging port for added functionality.

Learn More

FREQUENTLY ASKED QUESTIONS

Compatibility

Can the Corner Ryzer be used as a Solo Ryzer temporarily until I find more space?

The Corner Ryzer cannot be used as a Solo Ryzer at this time. The control box it comes with will detect an error if only two out of three legs are connected, and the desk will not function without that third!

Can I purchase an extra set of legs for my Solo Ryzer and convert it to a Corner Ryzer?

Currently, we do not sell individual parts for our Ryzer standing desks. For more information, please feel free to contact our customer service representatives at sales@progressivedesk.com

Troubleshooting

How do I set the maximum/minimum heights for my Ryzer?

NOTE: The steps below may vary depending on the remote model that you have. The following instructions were made for the standard RT-11 remote.

To set the maximum height for your Ryzer, go to the desired height you would like to set and follow the steps below:

1. Press M and see [5 -] indicated on the display

2. Press the UP button and notice [5 -] blinks

3. Hold the M button until you see [999] on the display

4. The maximum height has now been set

To set the minimum height for your Ryzer, go to the desired height you would like to set and follow the steps below:

1. Press M and see [5 -] indicated on the display

2. Press the DOWN button and notice [5 -] blinks

3. Hold the M button until you see [000] on the display

4. The minimum height has now been set

To reset the limits, follow the steps below:

1. Press M and see [5 -] indicated on the display and release

2. Hold the M you see [555]

3. Limits have been reset

I have to hold down the remote buttons to get to my pre-set height. Is there a way to do this with only one press?

NOTE: The steps below may vary depending on the remote model you have. The following instructions were made for the standard RT-11 remote.

If you have to hold down the remote’s buttons to get to your pre-set height, this means that your control box is in momentary control. To set your remote to non-momentary mode, follow the steps below:

1. Make sure that there is nothing underneath your desk, as we have to enter the reset procedure

2. Press and hold the DOWN button until the display shows [ASr]

3. Once [ASr] is shown, press and hold down [1], and you may see two values:

a. 10.1 = Non-momentary Mode

b. 10.2 = Momentary Mode

4. Complete the reset procedure by holding the DOWN button until your standing desk slightly lowers and rises.

How do I change the collision detection sensitivity?

Our standing desks have 3 settings for collision detection, and this can be set depending on your preference. To proceed, follow the steps below:

1. Make sure that there is nothing underneath your desk as we have to enter the reset procedure

2. Press and hold the DOWN button until the display shows [ASr]

3. Once [ASr] is shown, press and hold the UP [ ^ ] button and you may see three values:

a. 10.5 = 11 lbs

b. 10.6 = 22 lbs

c. 10.7 = 33 lbs

4. Complete the reset procedure by holding the DOWN button until your standing desk slightly lowers and rises.

My remote is showing an error code on the display? What should I do?

We have some troubleshooting steps for you to take if you see any of the following error codes on the Mini, Solo, or Corner Ryzer standing desks:

Сheck the error code here.

You may be wondering what about the Economy Ryzer standing desk? Here's a list of steps you can take for this model's error codes:

Сheck the error code here.

If the issue you are experiencing persists after following these steps, please feel free to contact our technical product engineers at 1-800-828-9414 extension 1, or send us an email at sales@progressivedesk.com.
